Festool KAPEX KS 120 REB Sliding Compound Miter Saw 575306

Festool

KAPEX KS 120 REB Sliding Compound Miter Saw 575306

FEATURES:

• The KAPEX features a rail forward design which increases precision and creates a compact footprint while preventing head play for accurate cuts.
• Easily align cuts from the left or right side using the dual lasers. The lasers clearly define the material which will be removed during the cut.
• Micro-adjustable bevel angle with up-front rotary knob. Large bevel scale and fine pointers make it easy to set precise bevel angles.
• Dust extraction up to 91% with behind the cut dust hood and pivoting 36 mm hose.
• Setup cuts quicker with dual lasers.
• Change blades in seconds with FastFix blade change system.
• Bevel easily with an oversized scale and counter balance dial with micro adjustability.
• 91% dust extraction efficiency with a 36 mm hose.
• Twin-column guide with two bearings for unique precision.
• Dual-line laser for an accurate indication of the cutting line.
• Fine adjustment of the saw blade angle accurate to the millimeter from the front of the machine.
• Special cutting position for cutting depths up to 120 mm.
• FastFix saw blade changing for adaptation to the working material.
• Twin-column guide for accurate cuts.
• Precision angle transfer via bevel and dual-line laser.
• Compact; lightweight design for convenient transportation.

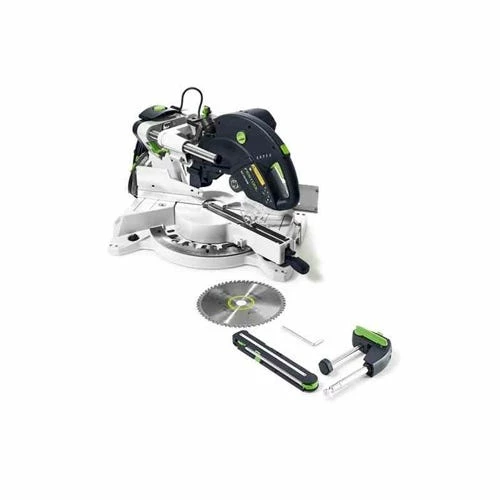

INCLUDES:

• (1) 60-Tooth universal blade
• (1) MiterFast Angle Transfer Device
• (1) Hold down clamp
• (1) Wrench

SPECIFICATIONS:

Blade Diameter	10-1/4 (260mm)
Crown Nested Capacity	6-5/8″
Cutting Depth	90° / 90° 12″ x 3-15/32″
Dimensions (w x d x h)	28″ x 19-3/4″ x 18-1/2″
Dust Port	27mm or 36 mm Hose
Left	45° / 45° 8-15/32″ x 2-1/8″
Left/Right	45° / 90° 8-15/32″ x 3-15/32″
Right	45° / 45° 8-15/32″ x 1-3/8″
Max Bevel	47º / 47º
Miter Range	50º / 60º
Special Cutting Depth	4-23/32″ x 3/4″
Power consumption	1600 Watts; 13 Amps
Speed	1;400 – 3;400 rpm
Weight	47 lbs
